Air Valve (Supply) – Fire Rated
For use with Titon‘s HRV Q Plus and CME Q Plus Ranges
FIRE DIFFUSER SUPPLY (100, 125 & 150 MM)
Overview
The Fire Rated Air Valve is manufactured from White Epoxy Coated Powder Coated Steel. The valve has a male spigot to fit inside a ducting 100/125/150 system depending on selection.
The supply air valve is fully adjustable and has a locking nut to fix the position of the control disc upon commissioning. It is supplied complete with fixing body and pre-drilled holes for installation.
The Fire Rated air valve incorporates an integral intumescent material and has been fire tested to BS EN 1365-2:2014 with 60 minutes rating for ceilings.

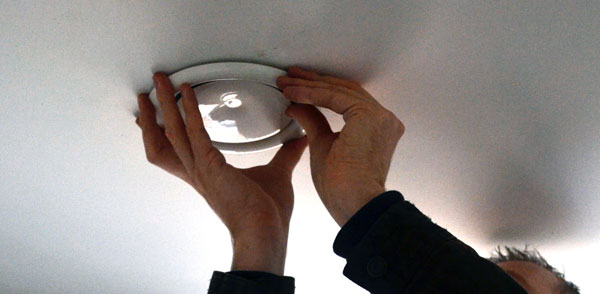

The valve engages/disengages to the fixing body by a quarter turn clockwise/anticlockwise.
Technical Information
Technical Information
Product Specification
| Ceiling Metal Vent Diffuser – Supply | |||
| Part Number |
8960276 | 8960233 | 8960275 |
| Size | 100mm | 125mm | 150mm |
| Colour | RAL9016 | RAL9016 | RAL9016 |
| Operating Temperature | |||
| Max | +60°C | +100°C | +60°C |
| Min | -15°C | -20°C | -15°C |
| Weight | 272g | 334g | 510g |
Drawing Dimensions
| 100mm | 125mm | 150mm | |
| ØA | 138 | 162 | 201 |
| ØB | 94 | 114 | 135 |
| C | 40 | 44 | 51 |
| D | 32 | 36 | 38.5 |
| ØE | 138 | 163 | 202 |
| ØF | 94 | 114 | 135 |
Dimensions in mm
Performance Details
Pressure loss with control disc open to 10mm
