Overture Flag Hinge
Flag hinge
FOR USE ON VINYL DOORS
Overview
Flag hinge designed specifically for vinyl door applications.
Suitable for
- VINYL
Features & Benefits

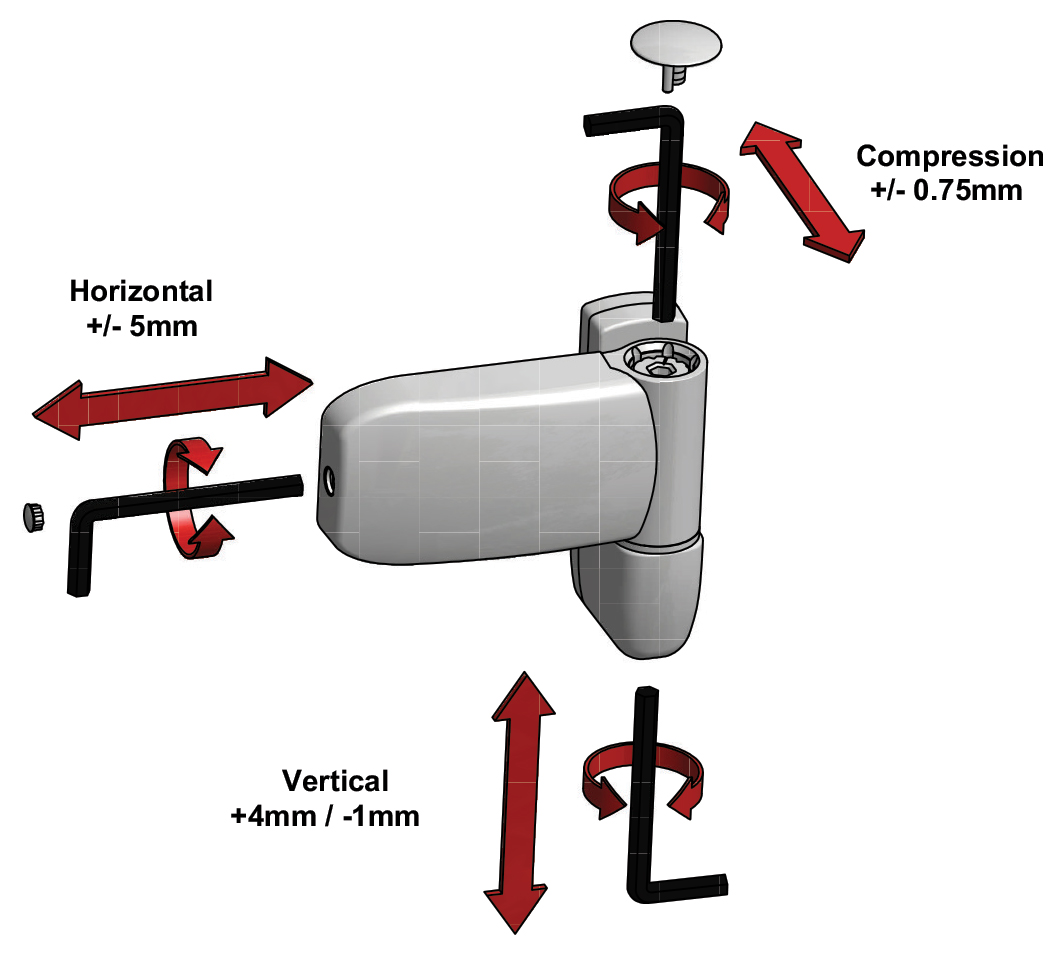

- 3D adjustability:
Lateral +5mm / -5mm
Height +4mm / -1mm
Compression +0.75mm / -0.75mm - Accommodate profiles with a step of 14.5mm – 26.5mm
- Standard and deep body options available
- Stainless steel stabilising pins locate into the reinforcement providing enhanced security
- Non-handed. Suitable for inward and outward opening doors
- Secure cover plate
- Fixing jig available
- Supplied with fixing screws
(Fixing Screws 4.8 x 29mm & Fixing Screws 4.8 x 45mm) - Packed in 24 off/box in trays
- Spares packed with cover screw top and side caps

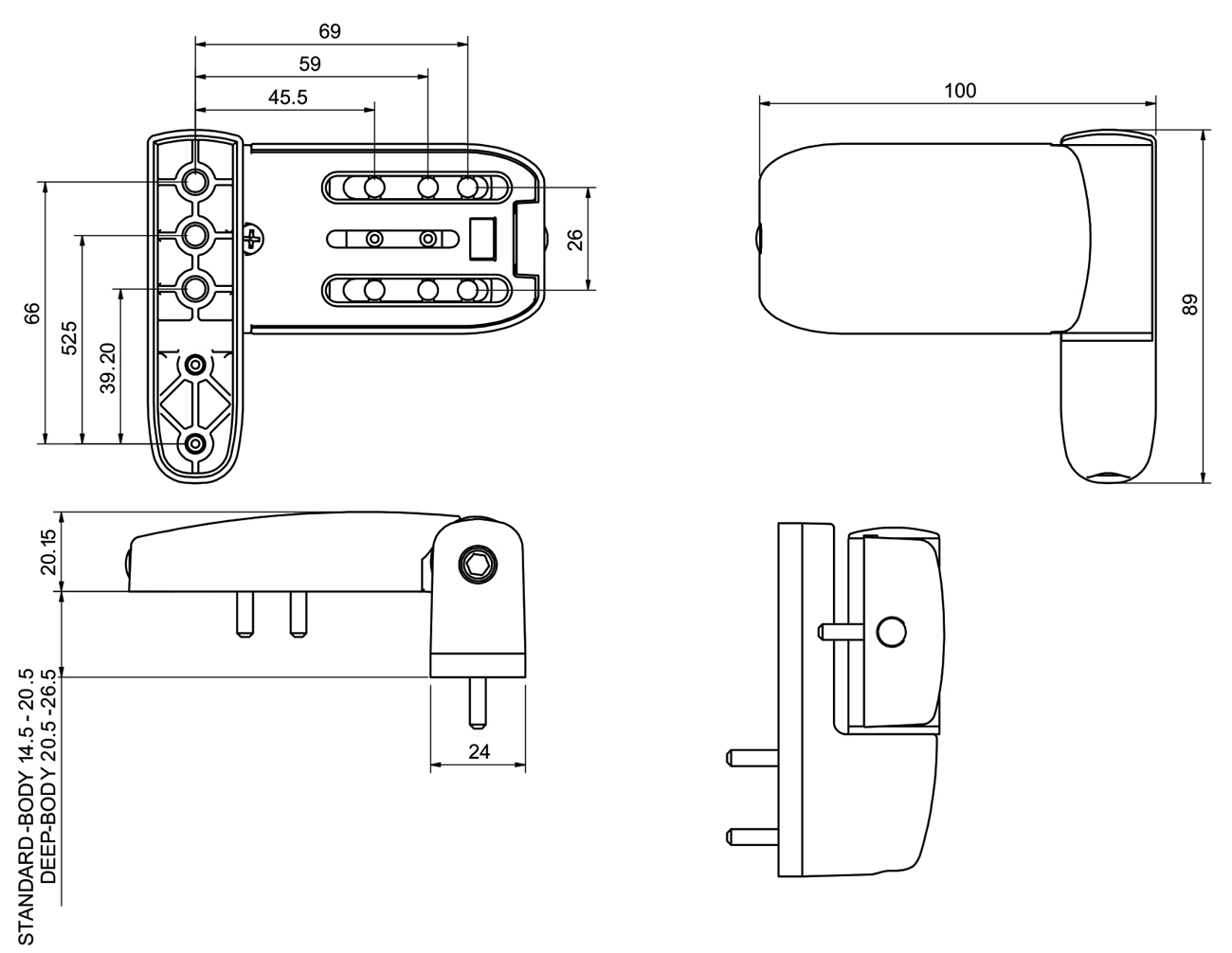

Technical Information
Technical Information
Units
Imperial
Metric (mm)
Details

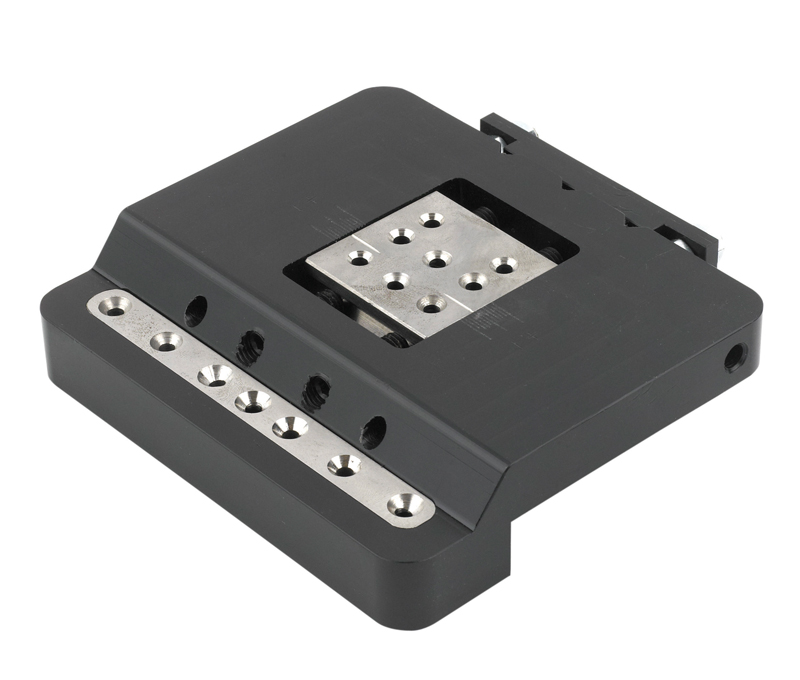

| Product | Product Code |
| TN9100 | Standard Body |
| TN9200 | Deep Body |
| Product Code | Finishes |
| 020 | White |
| 002 | Black |
| 763 | Light Oak (RAL 8001) |
| 965 | Dark Brown (RAL 8019) |
| 825 | Satin Chrome |
| 812 | Polished Chrome |
| 102 | PVD Gold |
| Product Code | Part Number |
| TN9400-020 | Spares Pack Pk 10 – White |
| TN9400-002 | Spares Pack Pk 10 – Black |
| TN9400-763 | Spares Pack Pk 10 – Light Oak |
| TN9400-965 | Spares Pack Pk 10 – Dark Brown |
| TN9300 | Flag Hinge Drill Jig |

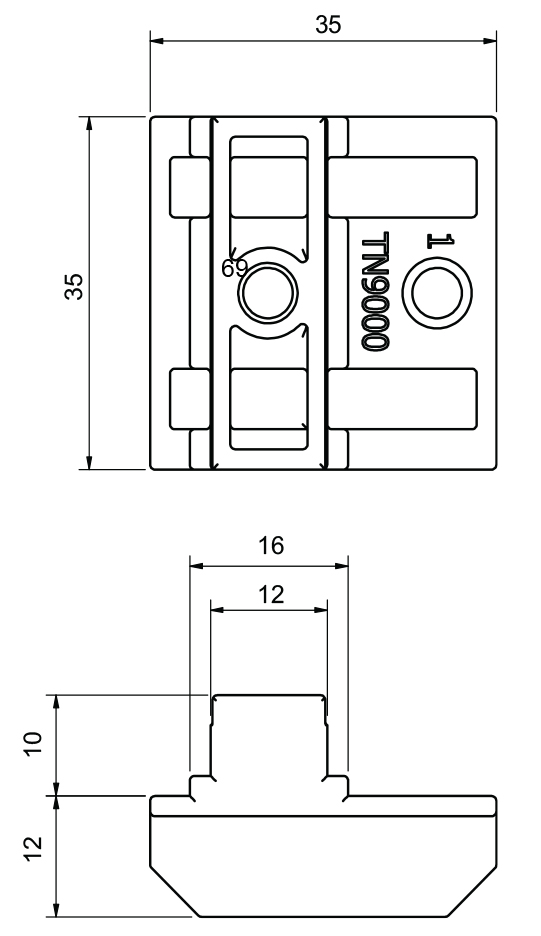

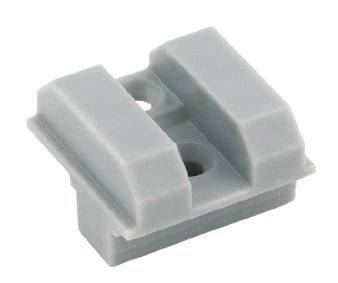

| TN9000-010 | Security Anti-Lift Block |
